| Brand Name | YINGMI Y3 Tour Guide System |
| Endurance | Approx.15 hours |
| Mode | One-to-Many、Many-to-Many |
| Delivery Period | 5-8 working days |
| Payment Method | L/C, paypal |
| MOQ | 1 |
Description
Products Description
This Yingmi Y3 Wireless Tour Guide System is a professional audio commentary device specially designed for exhibition and VIP reception scenarios. It supports one-to-many real-time voice transmission, with the advantages of anti-interference, long standby time, wide coverage and portable design. The system is equipped with a portable transmitter and a comfortable non-in-ear receiver, and supports dual-speaker explanation on the same frequency, which can realize the free switching of the main and deputy lecturers. It can meet the high-standard voice explanation needs of various high-end occasions such as exhibition VIP reception, corporate reception and government visit, and provides clear and smooth real-time commentary service for visitors and participants.
Specifications
Y3-T Transmitter technical parameters:
| Carrier frequency | 796MHz-816MHz |
| Channel number | 4 CH（Adjustable mode 4 channels） |
| Working distance | ≤80m |
| Standard memory | 4G |
| Language | 4language、customize |
| Working hour | ≥15h（hour） |
Y3-T Transmitter technical parameters:
| Carrier frequency | 860MHz-870MHz |
| Channel number | 4CH（Adjustable mode 4 channels） |
| Working distance | ≤80m |
| Battery capacity | 1200mAh |
| Working hour | ≥15h（hour） |
Y3-R Technical parameters of ear receiver:
| Carrier frequency | 860MHz-870MHz |
| Channel number | 4 CH（Adjustable mode 4 channels） |
| Working distance | ≤80m |
| Battery capacity | 230mAh |
| Weight | 18g |
| Size | 69×26×12mm |
| Working hour | ≥8h（hour） |
Product features
Simple Operation: Press the SET button to power on, the device will automatically search and connect to the signal without complicated operation steps.
LCD Display for Transmitter: The transmitter is equipped with a full-function LCD display, which clearly shows channel, volume, battery charge and signal strength for intuitive operation.
One-to-Many Transmission: One transmitter can be paired with an unlimited number of receivers, realizing one-way real-time voice explanation for multiple people.
Strong Anti-Interference: Adopt 2.4GHz high-frequency band for operation, effectively avoiding signal interference from other electronic devices.
Independent Volume Adjustment: Each receiver supports independent volume adjustment to meet the different listening needs of users.
Long Standby Time: Powered by high-performance polymer lithium battery, the transmitter can work for more than 15 hours and the receiver for more than 8 hours on a single charge.
Wide Coverage: The effective reception radius of the system is about 200 meters, which can cover large-scale venues such as exhibition halls and exhibition centers.
Dual Speaker on Same Frequency: Support two-person explanation on the same channel, and the main and deputy lecturers can switch at any time to meet the multi-person explanation needs of high-end occasions.
Application Scenarios
Exhibition VIP reception
Corporate product promotion and high-end exhibition
· Government visit and corporate reception
Factory tour and industrial tourism
Museum and exhibition hall explanation
Wireless conference and simultaneous interpretation
Teaching and training in institutions
Product Details

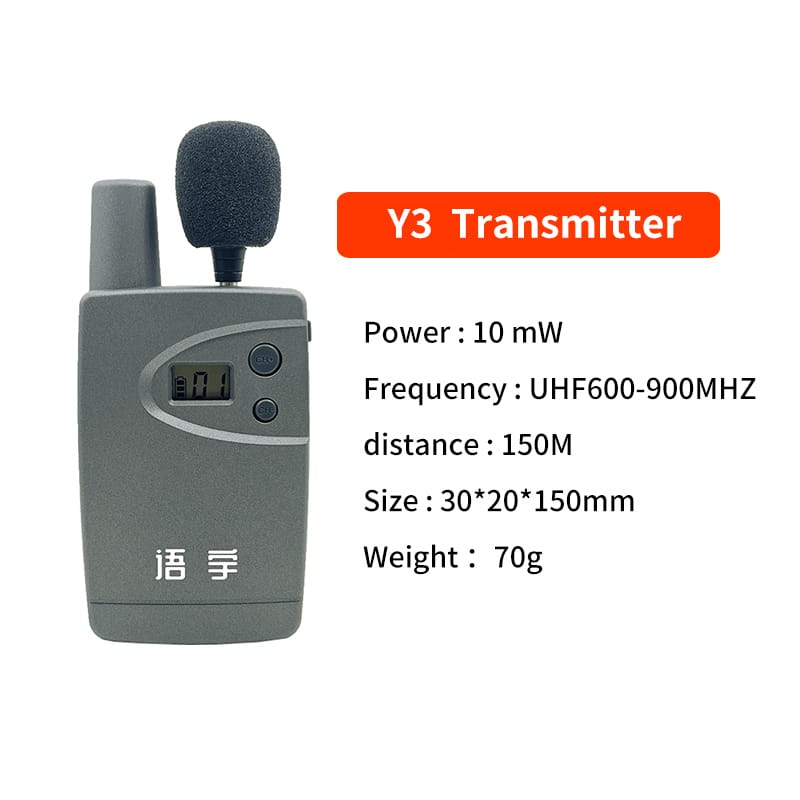

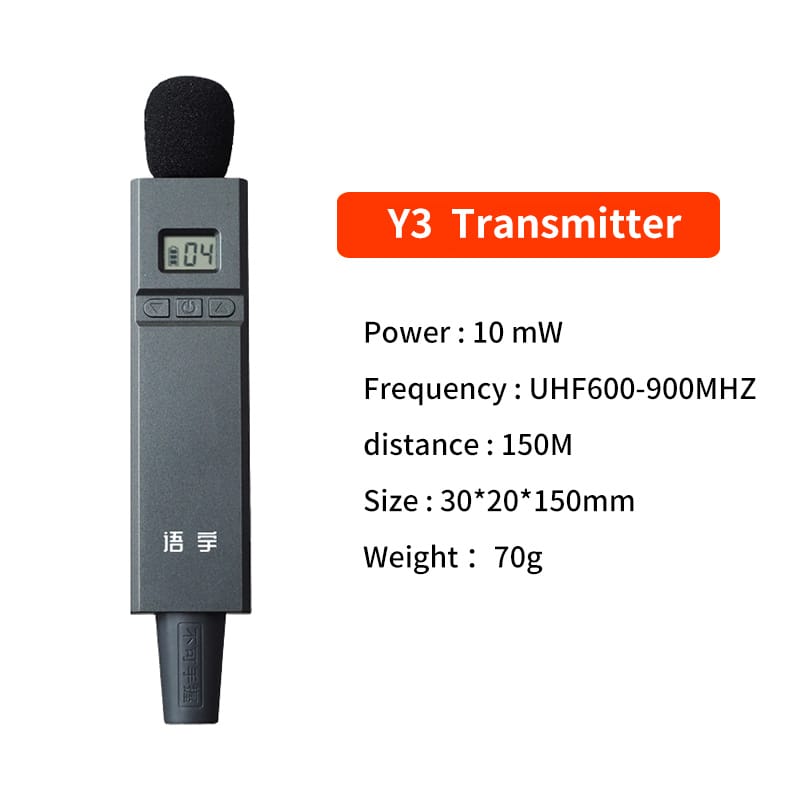

Transmitter
It is a portable wireless design with a compact body, easy to hold and carry for lecturers. The full-function LCD display is installed on the surface, with clear font and high display definition, which can clearly view the working status of the device at any time. The operation buttons are arranged reasonably, with simple and easy-to-understand functions, and can be quickly operated even for the first use.
Receiver
Adopt non-in-ear wearing design, which is ergonomic and comfortable to wear for a long time without ear discomfort. The weight is only 18g, with a mini size of 69×26×12mm, which is light and easy to carry, and will not bring a burden to the user’s body. The volume adjustment button is set at a prominent position, which is convenient for one-key adjustment and quick response.
Microphone
Provide two types: plug-in microphone and headset microphone, which can be freely selected according to the use scenario and personal habit. The microphone has high sound pickup sensitivity, which can collect clear voice signals, and the transmitted voice is clear and without noise, ensuring the effect of real-time explanation.
Special Storage Box
Framed in all-aluminum alloy, it is sturdy and durable, with strong anti-vibration and anti-collision performance, which can effectively protect the internal transmitter, receiver and other accessories from damage during transportation and storage. The built-in silicone square groove with a sponge top is perfectly matched with the product size, making the equipment fit snugly in the groove without shaking. It is also equipped with an independent accessory storage area for placing charging cables and microphones, with reasonable space layout and easy storage and carrying.
Charging Accessories
Contact Charging Box (HM-EB36/HM-EB48): Input 220V, output 5V-20A, with intelligent charge management, supporting trickle pre-charge, constant current and constant voltage charging modes, which can charge 25 or 48 receivers at the same time, fast and safe, and effectively extend the battery life.
USB Charger (HM-EG10): Input 220V, output 5V-6A, portable one-charge ten design, with USB plug, plug and play, suitable for on-site emergency charging and small batch charging.
Packing&Shipping
Packaging Details: Standard export packing. One unit with one independent box.
Shipping:DHL/FedEx/UPS/EMS: 3-7 workdays
FAQ
Q1: How to power on and connect the Yingmi Y3 Wireless Tour Guide System?
A1: Press the SET button on the transmitter to power on, and the transmitter will automatically search for the signal. Then turn on the receiver, and the receiver will match and connect with the transmitter automatically. The whole process is no need for manual pairing, simple and fast.
Q2: How many receivers can a single Y3-T transmitter be paired with at most?
A2: There is no upper limit on the number of paired receivers. One transmitter can be connected with an unlimited number of Y3-R receivers at the same time, which is suitable for large-scale group explanation scenarios.
Q3: Can the receiver be used normally outdoors?
A3: Yes, the system has strong anti-interference performance and a wide coverage of 200 meters. It can be used normally in outdoor open scenes such as factory tours and industrial tourism, and the voice signal is stable and clear without delay.
Q4: How to charge the transmitter and receiver?
A4: The transmitter and receiver can be charged with the matching USB charger (HM-EG10) for single or small batch charging; for large quantity charging, the contact charging box (HM-EB36/HM-EB48) can be used to charge multiple receivers at the same time, which is efficient and convenient.
Q5: Does the system support language customization?
A5: Yes, the Y3-T transmitter supports language customization on the basis of the original 4 languages, which can be customized according to the actual use needs of customers in different countries and regions.
