C7 self-service Audio Guide System
Supports switching between 8 languages
Supports multi-level volume adjustment
Supports high-speed data updates
Uses long-life passive RFID transmitter
High-end digital chip provides superior sound quality
Description
Products Description

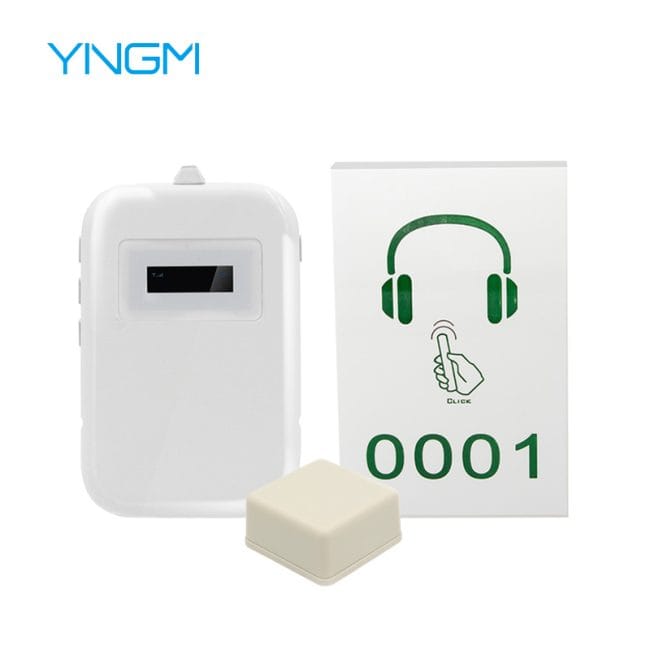

The C7 self-service Audio Guide system is a new generation of self-service audio guide system developed by HUMANTEK. CO., LTD. for museums, which have a high density of exhibits. This audio guide system has dual functions of automatic sensing and NFC touch sensing. Regardless of the order of their arrival or whether the languages they choose are the same, the audio guide can automatically determine the content of the explanations based on the tourists’ locations and needs.
Specifications
| Product Name | C7 self-service Audio Guide system |
| Operating Frequency | 13.56MHz |
| Card Reading Distance | <=5cm; (Depending on card type) |
| Card Reading Time | <100ms |
| Operating Voltage | DC 5V |
| Audio Mode | MP3 |
| Weight | 50g |
| Dimensions | 82mm*59mm*12.5mm (body) |
| Working Time | ≥10 hours |
Product features
Dual Induction Modes:

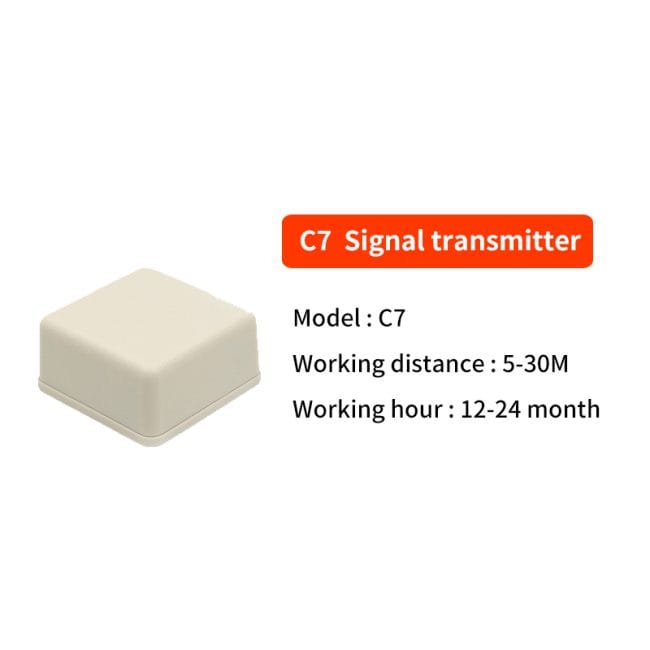

Auto-induction: Automatically plays explanations via on-site signal transmitters when entering the target area (requires ≥5m distance between adjacent points to avoid signal interference).
NFC Touch Induction: Simply touch the bottom of the device to NFC tags for instant explanations, no physical button operation needed, suitable for exhibitions with small exhibit spacing.
Superior Performance: Supports multi-language selection, large storage capacity for 9999 audio clips, and high-fidelity sound quality with low noise.
Products Benefits
Dual Induction Convenience
Features auto-induction and NFC touch dual modes to adapt to different exhibition scenarios. Auto-induction plays explanations automatically when entering the area (for spaces with ≥5m between points), while NFC touch allows instant audio access with a simple tap—no physical button operation required, perfectly solving the problem of dense exhibits and saving visitors’ operation time.
Personalized & Flexible Experience
Supports multi-language selection and stores up to 9999 audio clips. Regardless of arrival time or language preference, every visitor can listen to explanations from the beginning, breaking the limitation of traditional cyclic broadcasting and meeting the personalized needs of diverse users.
Clear & Interference-Free Audio
Adopts advanced electronic technology and wireless communication power control, effectively eliminating signal crosstalk between adjacent explanation points. Delivers 44.1k sampling rate and 128kbps high-fidelity sound, ensuring accurate, clear and low-noise listening experience for visitors.
Portable & Long-Lasting Performance

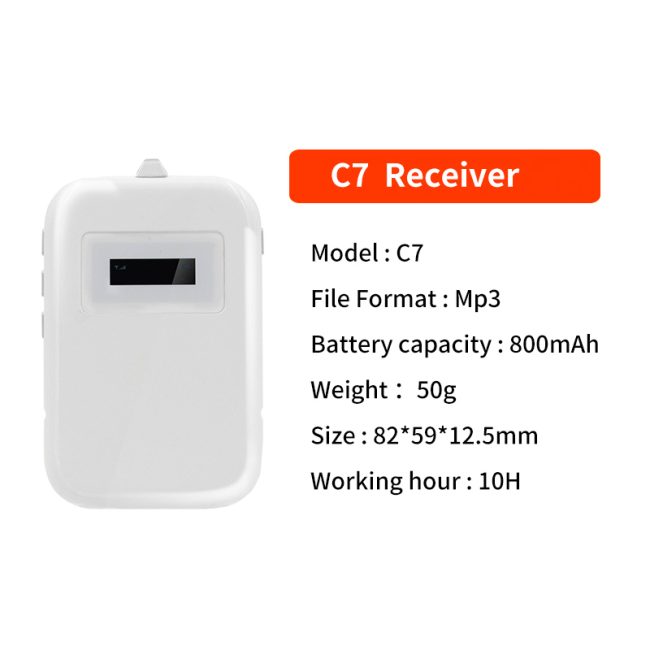

Weighs only 50g with a compact size (82×59×12.5mm), easy to carry for all-day tours. Equipped with an 800mAh battery, it supports ≥10 hours of continuous playback, avoiding frequent recharging and ensuring reliable use throughout the visit.
Easy Storage & Efficient Charging

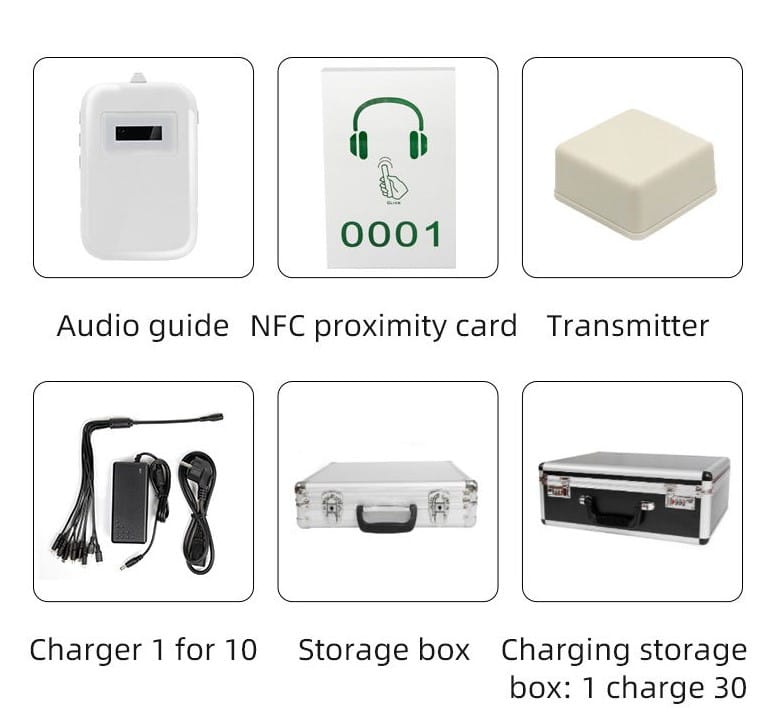

Matched with full-aluminum storage cases (holding 30-50 devices) with shockproof design, and high-efficiency charging solutions (45-device charging case & 10-device USB charger). The intelligent charging mode (trickle pre-charging → constant current → constant voltage) extends battery life, facilitating venue management and transportation.
Product Details
Portable Design:
Slim body (12.5mm thick) fits easily in pockets or hands, comfortable to hold for long periods.
Durable & Protective Accessories:
Storage Case: Full aluminum frame with silicone grooves and top sponge, holds 30-50 devices, reduces vibration during transportation.
Charging Case: Input 220V, output 5V-20A, supports 45 devices simultaneously, adopts trickle pre-charging → constant current → constant voltage mode to extend battery life (size: 70×45×10cm).
USB Charger: Input 220V, output 5V-6A, portable 10-device charger with USB plug, plug-and-play.
Reliable Battery Life:
800mAh battery ensures ≥10 hours of continuous playback, sufficient for full-day tours without recharging.
Application
· Cultural Venues: Museums, art galleries, literature halls, memorial halls.
· Educational Institutions: Universities, colleges, vocational schools (campus tours, laboratory explanations).
· Enterprise & Commercial Spaces: Corporate exhibition halls, brand experience centers
· Scenic Spots: Cultural relic sites, scenic area interpretation.
Packing＆Shipping
Packaging Details: Standard export packing. One unit with one independent box.
Shipping: DHL/FedEx/UPS/EMS: 3-7 workdays
