| Brand Name | YINGMI L5 Tour Guide System |
| Endurance | Approx.30 hours |
| Mode | One-to-Many |
| Delivery Period | 5-8 working days |
| Payment Method | L/C, paypal |
| MOQ | 1 |
Description
Products Description
We provide the YINGMI L5 Portable Tour Guide System, a professional electronic audio guide solution with stable UHF wireless transmission. It supports one-to-many real-time voice explanation, featuring strong anti-interference performance, ultra-long battery life, and a comfortable non-in-ear receiver design. With a maximum reception range of 150 meters, the system is equipped with batch charging and intelligent storage accessories, easy to operate and manage. It is widely applicable to scenic spots, museums, enterprise visits and various high-end reception activities, and has been exported to dozens of countries around the world, meeting the professional voice explanation needs of different scenarios such as group visits, VIP receptions and on-site exhibitions.
Specifications
L5 Transmitter technical parameters:
| Carrier frequency | UHF794-806Mhz |
| Number of channels | 150CH（Adjustable mode: 1 – 150 channels） |
| Communication distance | ≤100m |
| Charging duration | 2.5h |
| Weight | 60g |
| Size | 148mm(L)*38mm(W)*19mm(H) |
| Working hours | ≥30h |

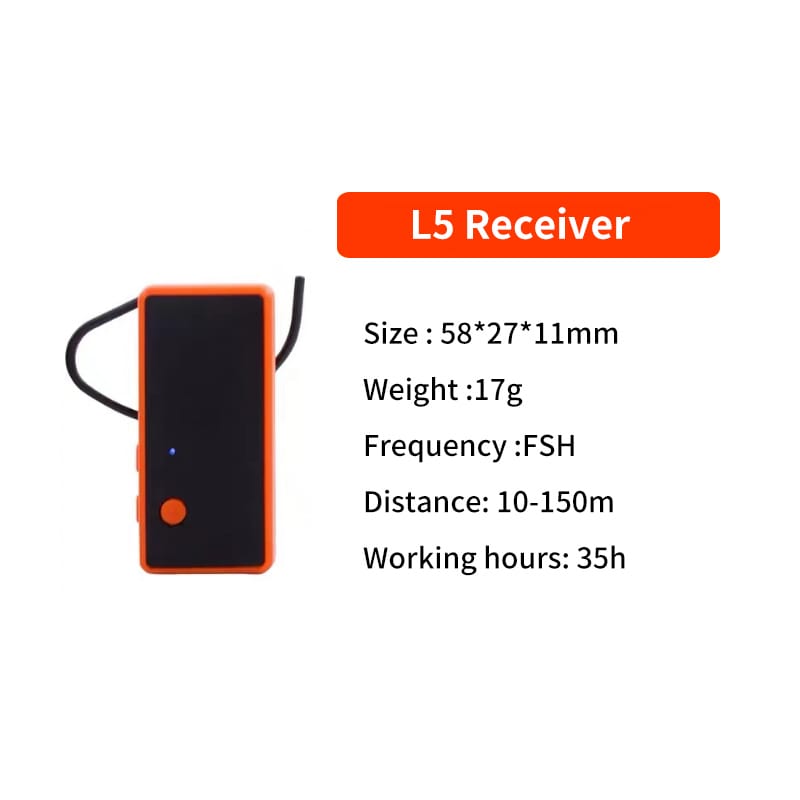

L5-R Technical parameters of the ear-mounted receiver:
| Carrier frequency | UHF794-806Mhz |
| Number of channels | 30CH（Adjustable mode: 1 – 18channels） |
| Communication distance | ≤150m |
| Charging duration | 2.5h |
| Weight | 17g |
| Size | 58(L)*27mm(W)*11mm(H) |
| Working hours | ≥35h |
Product features
- Simple Operation: Press the SET button to power on, the device automatically searches and connects to the signal, no complicated operation required.
- Full-Function LCD Display: The transmitter is equipped with an LCD screen, real-time displaying channel, volume, battery power, signal strength and other information.
- One-to-Many Transmission: One transmitter can pair with an unlimited number of receivers, realizing synchronous group voice explanation without mutual interference.
- Strong Anti-Interference: Adopting UHF 794-806Mhz high-frequency band and special circuit processing, effectively resisting external signal interference with high-fidelity sound quality.
- Comfortable Wearing: The receiver adopts non-in-ear design, mini size and light weight, providing a comfortable wearing experience for long-time use.
- Customizable Volume: The receiver supports independent volume adjustment, mute setting and sound sensitivity adjustment to adapt to different usage environments.
- Channel Memory: The receiver has a channel memory function, which automatically matches the last used channel when powered on again.
- Ultra-Long Battery Life: Powered by high-performance polymer lithium battery, safe and environmentally friendly; the transmitter works for ≥30h and the receiver for ≥35h after a full charge.
- Wide Coverage: The maximum reception range of the receiver is 150 meters, realizing free movement within the venue without affecting the receiving effect.
- Convenient Management: Equipped with professional batch charging box and all-aluminum storage box, supporting centralized charging, shockproof protection and easy transportation and storage.
Application Scenarios
- Scenic spots and museums: Real-time voice explanation for tourist groups, VIP visits and cultural exhibition activities.
- Enterprise and industrial tourism: On-site explanation for factory visits, production line inspections and corporate product promotion.
- High-end exhibitions and conferences: Synchronous voice interpretation for exhibition booths, business conferences and VIP receptions.
- Schools and training institutions: On-site teaching explanation for outdoor practice, professional training and academic exchange activities.
- Government and institutional visits: Special voice guide for official inspections, inter-institutional visits and reception activities.
Product Details
Transmitter: The slim and portable design is easy to hold and carry; the full-function LCD display realizes visual operation, and the key layout is humanized for quick adjustment of channel and volume.
Receiver: The ultra-mini size and non-in-ear design avoid ear discomfort caused by long-time wearing; the streamlined appearance fits the human body design, and the wireless receiving mode ensures free movement.
Charging Box: Adopts intelligent charging management (trickle pre-charging – constant current – constant voltage), which is fast and safe, and can charge multiple devices at the same time; the metal casing is sturdy and durable, with optional UV disinfection function to keep the equipment clean.
Special Storage Box: The all-aluminum outer frame is anti-collision and anti-pressure; the built-in silicone grooved plate and top sponge can fix the receiver in place, reduce vibration during transportation, and the independent accessory storage area is convenient for placing charging cables and other small parts.
Overall Material: The main body of the equipment is made of high-quality ABS material, which is scratch-resistant and fall-resistant, suitable for frequent on-site use in various scenarios.
Packing&Shipping
Packaging Details: Standard export packing. One unit with one independent box.
Shipping:DHL/FedEx/UPS/EMS: 3-7 workdays
FAQ
Q1: How long does it take to fully charge the transmitter and receiver?
A1: Both the transmitter and the receiver take 2.5 hours to fully charge, and they are compatible with the special batch charging box and USB charger of the product.
Q2: Can the number of receivers paired with one transmitter be limited?
A2: There is no limit to the number of receivers, and one transmitter can realize one-to-many synchronous signal transmission, which is suitable for large group visits.
Q3: Is the receiving distance of the receiver really up to 150 meters?
A3: The maximum effective receiving distance of the receiver is 150 meters in an open and unobstructed environment; the receiving distance will be slightly reduced in a closed environment with many obstacles, but it can still meet the normal use of most venues.
Q4: Does the receiver support volume adjustment for a single device?
A4: Yes, each receiver has an independent volume adjustment button, which can adjust the volume and set mute according to personal needs without affecting other receivers.
Q5: Can the charging box be equipped with UV disinfection function?
A5: Yes, the HM-EB36/HM-EB48 contact-type charging box supports the optional UV disinfection function, which can be selected when purchasing according to needs.
