E8 Wireless Tour Guide System – Product Introduction

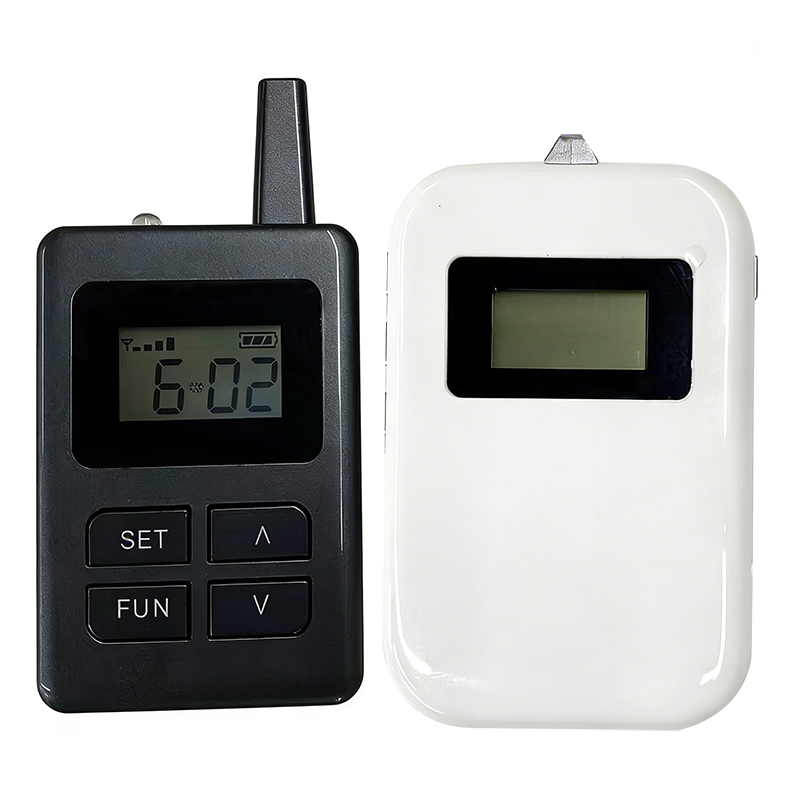

The E8 wireless tour guide system is a professional and reliable solution specifically designed for tour guiding services, presentations, lectures, and group activities. This system consists of a compact transmitter and a lightweight receiver, ensuring clear audio transmission over long distances and supporting flexible channel selection as well as user-friendly operation. It is suitable for museums, tourist groups, factories, training courses, and educational environments.
Key Features
Dual Operation Modes
Supports two selectable modes:
F0 Mode – Excellent voice clarity, 100 kHz channel spacing, longer transmission range (up to ~150m).
F1 Mode – High-quality audio, 200 kHz channel spacing, balanced range (up to ~120m).Easy Channel Management
Transmitter allows quick channel setup and synchronization with receivers.
Supports up to 100 channels in F0 mode and 50 channels in F1 mode.Long Operating Range
Stable transmission within 120–180 meters, suitable for large group activities and outdoor use.Long Battery Life
Transmitter: 10 hours of continuous use.
Receiver: 8 hours of use per full charge.
Low power consumption with intelligent sleep mode.Fast Pairing & One-Touch Control
Receivers auto-sync to transmitter channel in pairing mode.
Transmitter can remotely power off all paired receivers with one button hold.
Advantages
Crystal Clear Audio
MP3 decoding (ISO11172-3) with configurable bitrate and sampling for voice or music priority.Flexible & Scalable
Multiple channels and modes allow simultaneous use of multiple systems without interference.User-Friendly Design
Simple button controls for volume, channel, and mode selection. Clear icon-based display.Lightweight & Portable
Receiver weighs only 53g, comfortable ear-hook design. Transmitter compact and easy to carry.Convenient Charging
Supports USB individual charging or charging case option for easy power management.
Technical Specifications
| Parameter | Specification |
|---|---|

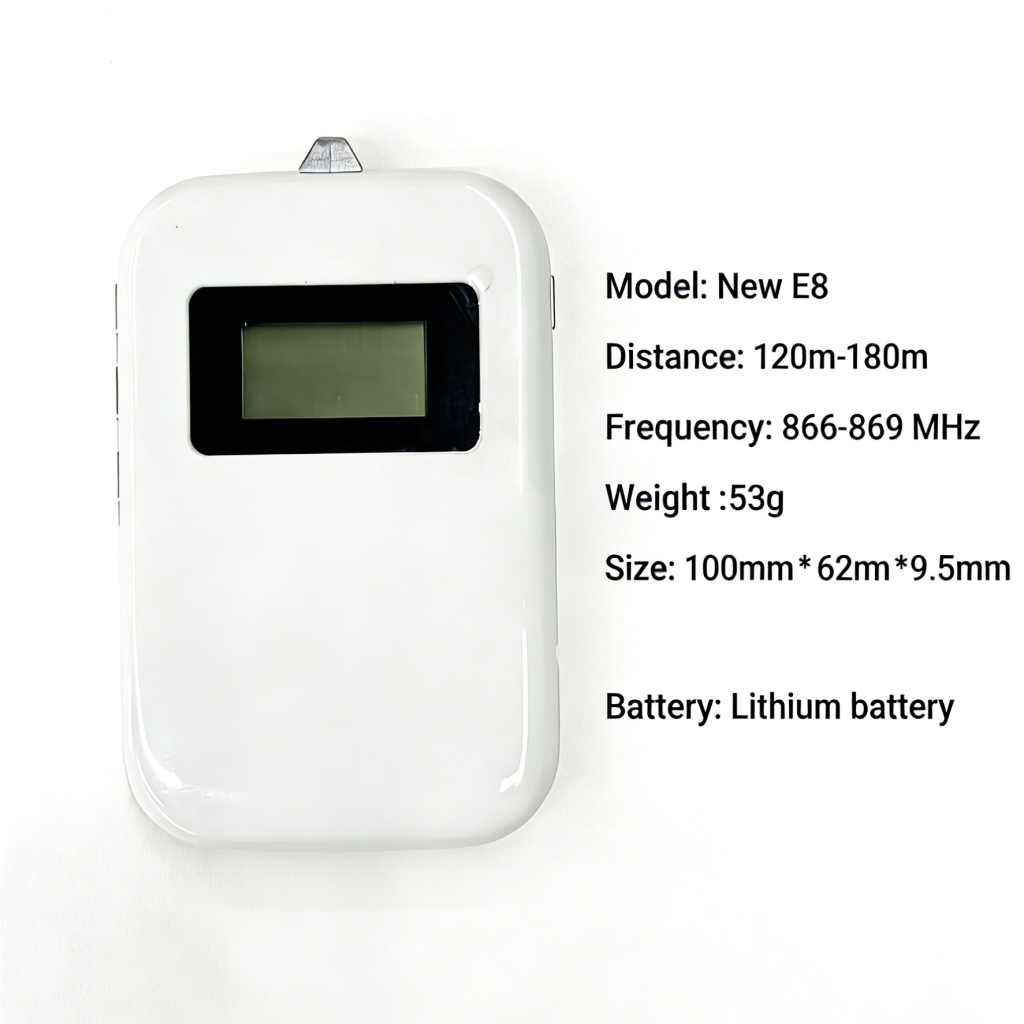

| Dimensions (Receiver) | 100mm × 62mm × 9.5mm |
| Weight (Receiver) | 53g |
| Power Supply | Built-in lithium battery |
| Audio Decoding | ISO11172-3 (MPEG1.0 Layer 3) |
| Bitrate | 50kbps |
| Sampling Rate | 32kHz |
| Frequency Range | 860MHz – 870MHz |
| Headphone Output Power | 5mW |
| Transmission Distance | 120–180 meters (depending on mode) |
| Channel Modes | F0, F1 |
| Channels per Mode | F0: 100 channels, F1: 50 channels |
| Charging Method | USB single unit / Charging case option |
Suit selection：
| KIT 1 | 1 Transmitters + 20 Receivers + 1 Charging box |
| Transmitter*1、Receiver*20、30-Slot Charging box*1、Headset microphone*1、Receivers*20、Charging cable*1 、Lanyard*21 | |
| KIT 2 | 1 Transmitters + 30 Receivers + 1 Charging box |
| Transmitter*1、Receiver*30、30-Slot Charging box*1、、Headset microphone*2、Receivers*30、Charging cable*1 、Lanyard*31 | |
| KIT 3 | 1 Transmitters + 40 Receivers + 1Charging box |
| Transmitter*1、Receiver*40、30-Slot Charging box*2、Headset microphone*2、receivers*40、Charging cable*1 、Lanyard*41 | |
| KIT 4 | 2 Transmitters + 20 Receivers + 1 Charging box |
| Transmitter*2、Receiver*20、30-Slot Charging box*1、、Headset microphone*2、Receivers*20、Charging cable*1 、Lanyard*22 | |
| KIT 5 | 2 Transmitters + 30 Receivers + 1 Charging box |
| Transmitter*2、Receiver*30、30-Slot Charging box*1、、Headset microphone*2、Receivers*30、Charging cable*1 、Lanyard*32 | |
| KIT 6 | 2 Transmitter + 40 Receivers + 1 Charging box |
| Transmitter*2、Receiver*0、30-Slot Charging box*2、、Headset microphone*2、Receivers*40、Charging cable*1 、Lanyard*42 |
